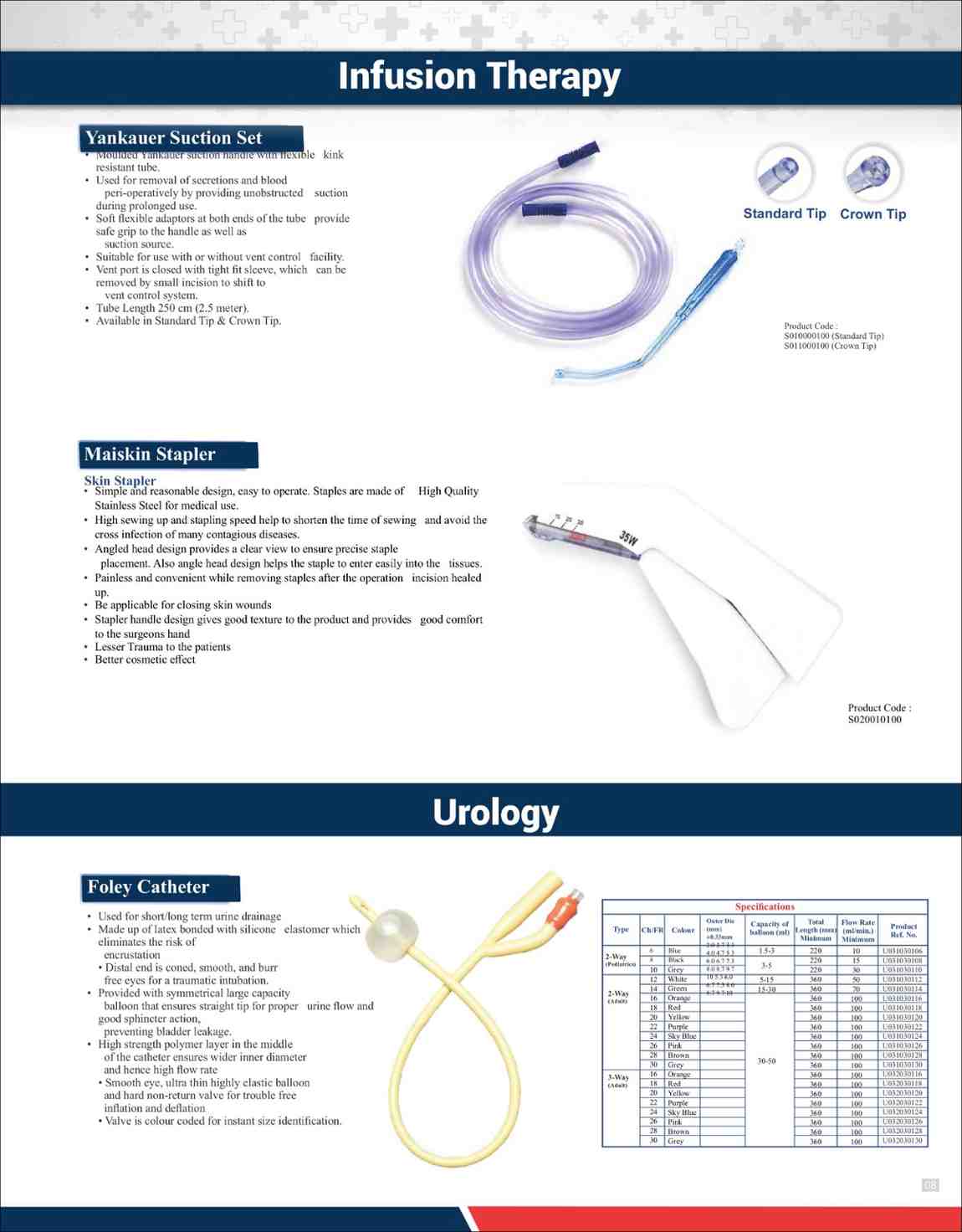

- Yankauer Suction Set
- Skin Stapler
Anaesthesia & Respiratory Care
- Endotracheal Tube (Plain/Cuffed)
- Reinforced Endotracheal Tube (Plain/Cuffed) Spinal Needle
Urology Nephrology Foley’s
- Catheter
Renal Care
- Hemodialysis Catheter
Endoscopic
- Ligation Clips
“Quality is not an act, it is a habit”
“Mais India Medical Devices Pvt. Ltd. is among the few medical disposable companies to have automatic computerised vision inspection system set up for entire manufacturing facility.
Each finished device is inspected against a master by high resolution cameras. This along with our fully automatic production assembly lines and well equipped state-of-the-art R & D capability gives us the confidence to guarantee an unbeatable quality.”
Zero
Manual
Error
Minimal
Bio
Burden
Consistent
Quality at all
Levels
🡆 Needle Orientation
🡆 Needle Tip Damage
🡆 Trim Distance
🡆 Catheter Tipping Quality
🡆 Needle and Catheter Length Variation
🡆 Needle Burr
Technical Specifications
| Size | Colour Code | Ext. Dia. mm | Catheter Length mm | Flow Rate ml./mm |
| 14G | Orange | 2.1 | 45 | 300 |
| 16G | Grey | 1.7 | 45 | 200 |
| 17G | White | 1.5 | 45 | 140 |
| 18G | Green | 1.3 | 45 | 95 |
| 18G | Green | 1.3 | 32 | 95 |
| 20G | Pink | 1.1 | 32 | 62 |
| 22G | Blue | 0.9 | 25 | 33 |
| 24G | Yellow | 0.7 | 19 | 20 |
| 26G | Violet | 0.6 | 19 | 15 |
Infusion Therapy, Urology, Renal Care, Endoscopic

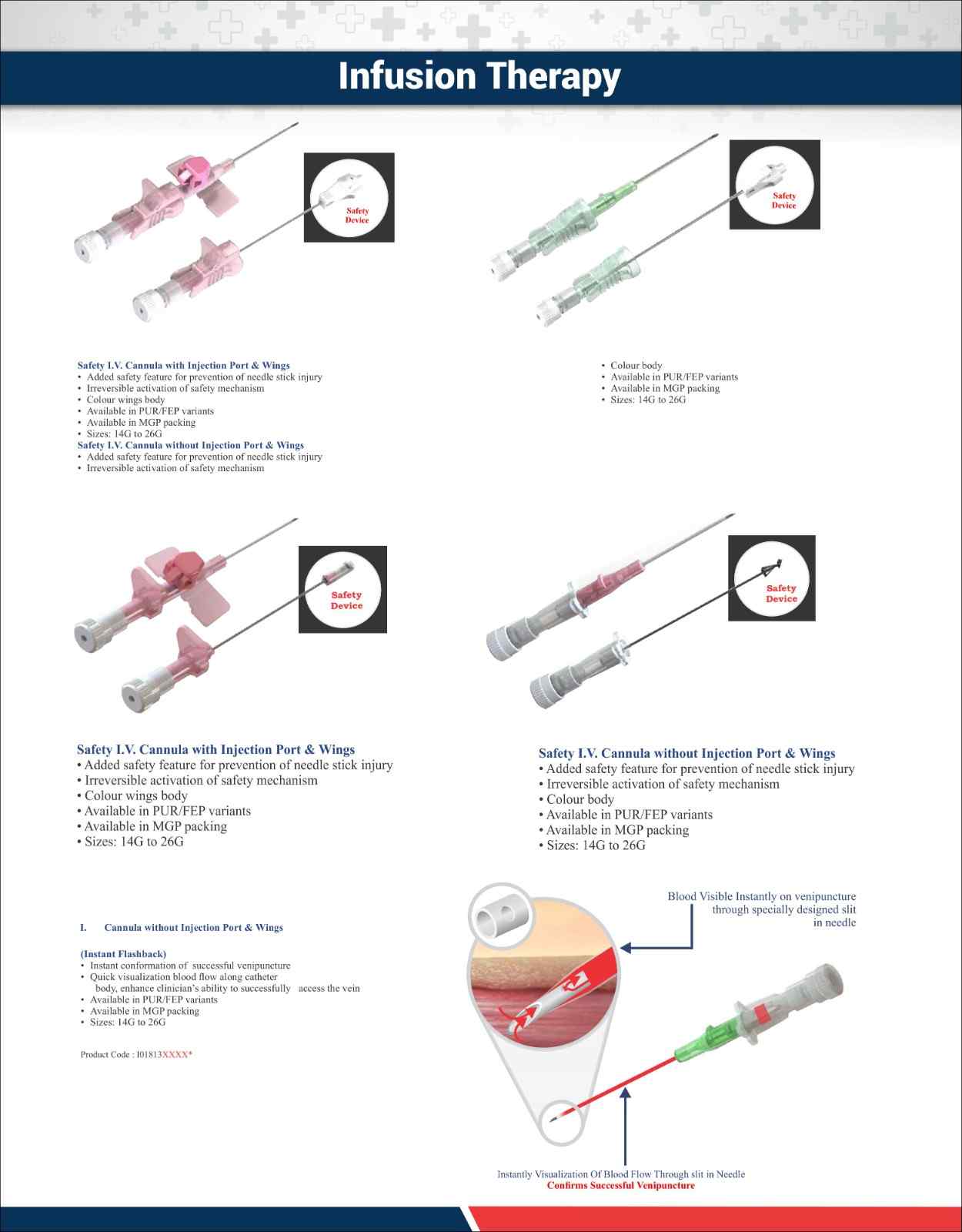

Safety IV. Cananda with Bajection
Part & Wings
- Added safety feature for prevention of needle stick injury
- Irreversible activation of safety mechanism
- Colour wings body
- Available in PUR/FEP variants
- Available in MGP packing
- Sizes: 14G to 26G
Safety I.V. Cannula without Injection
Port & Wings
- Added safety feature for prevention of needle stick injury
- Irreversible activation of safety mechanism
- Colour body
- Available in PUR/FEP variants
- Available in MGP packing
- Sizes: 14G to 26G

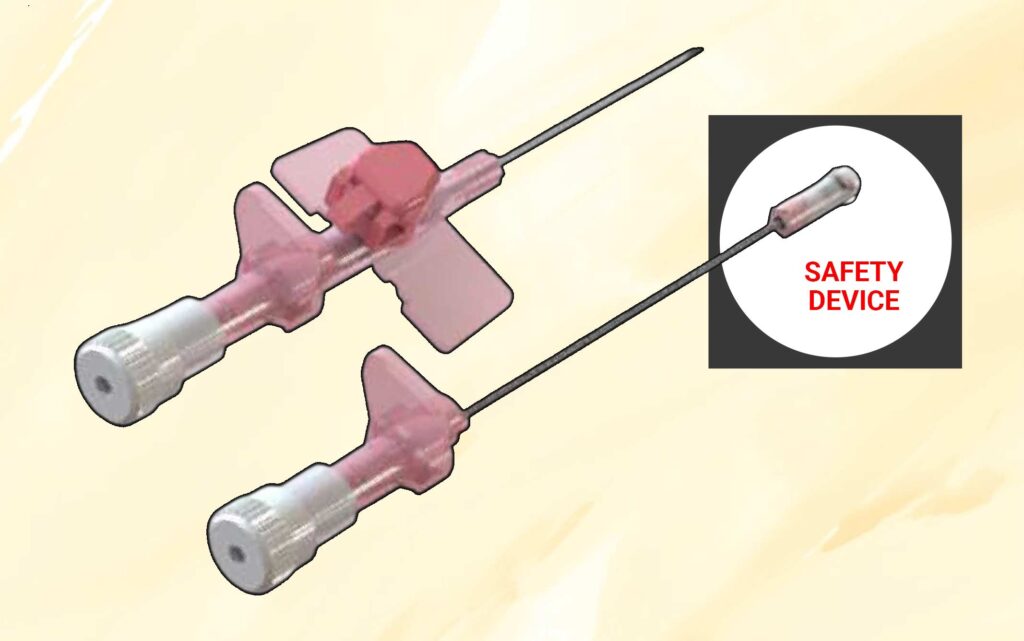

Safety L.V. Cannula with Injection
Port & Wings
- Added safety feature for prevention of needle stick injury
- Irreversible activation of safety mechanism
- Colour wings body
- Available in PUR/FEP variants
- Available in MGP packing
- Sizes: 14G to 26G

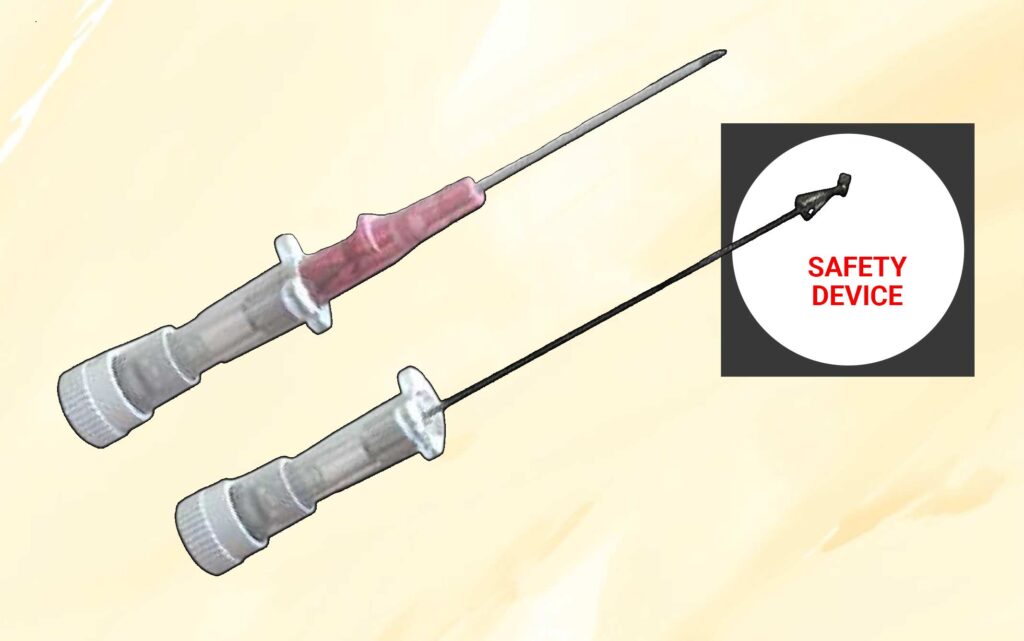

Safety L.V. Cannula without Injection
Port & Wings
- Added safety feature for prevention of needle stick injury
- Irreversible activation of safety mechanism
- Colour body
- Available in PUR/FEP variants
- Available in MGP packing
- Sizes: 14G to 26G

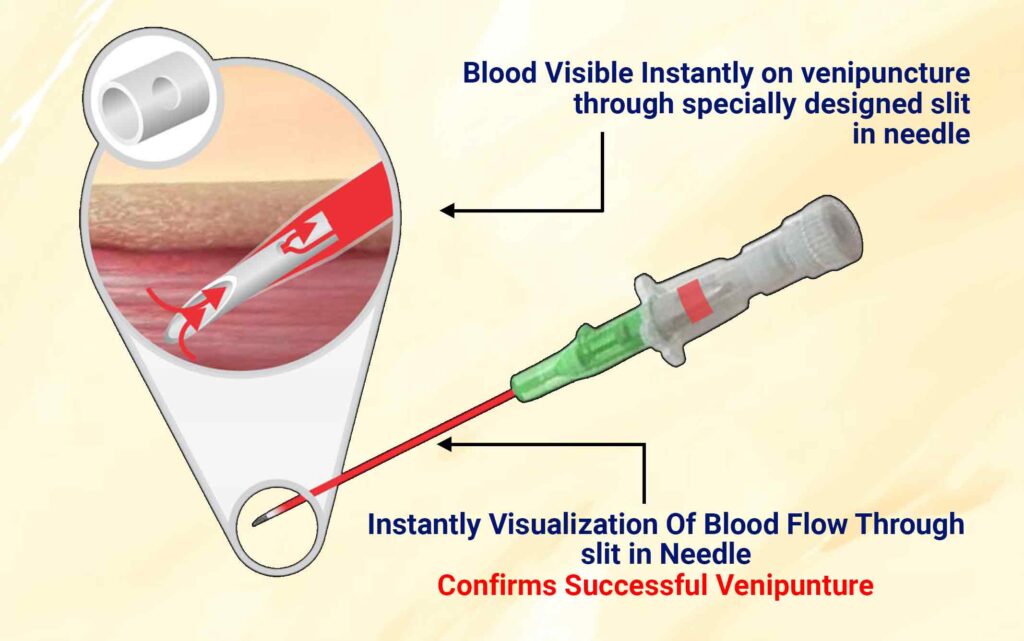

Cannula without Injection
Port & Wings
- Instant conformation of successful venipuncture
- Quick visualization blood flow along catheter body, enhance clinician’s ability to successfully access the vein
- Available in PUR/FEP variants
- Available in MGP packing
- Sizes: 14G to 26G

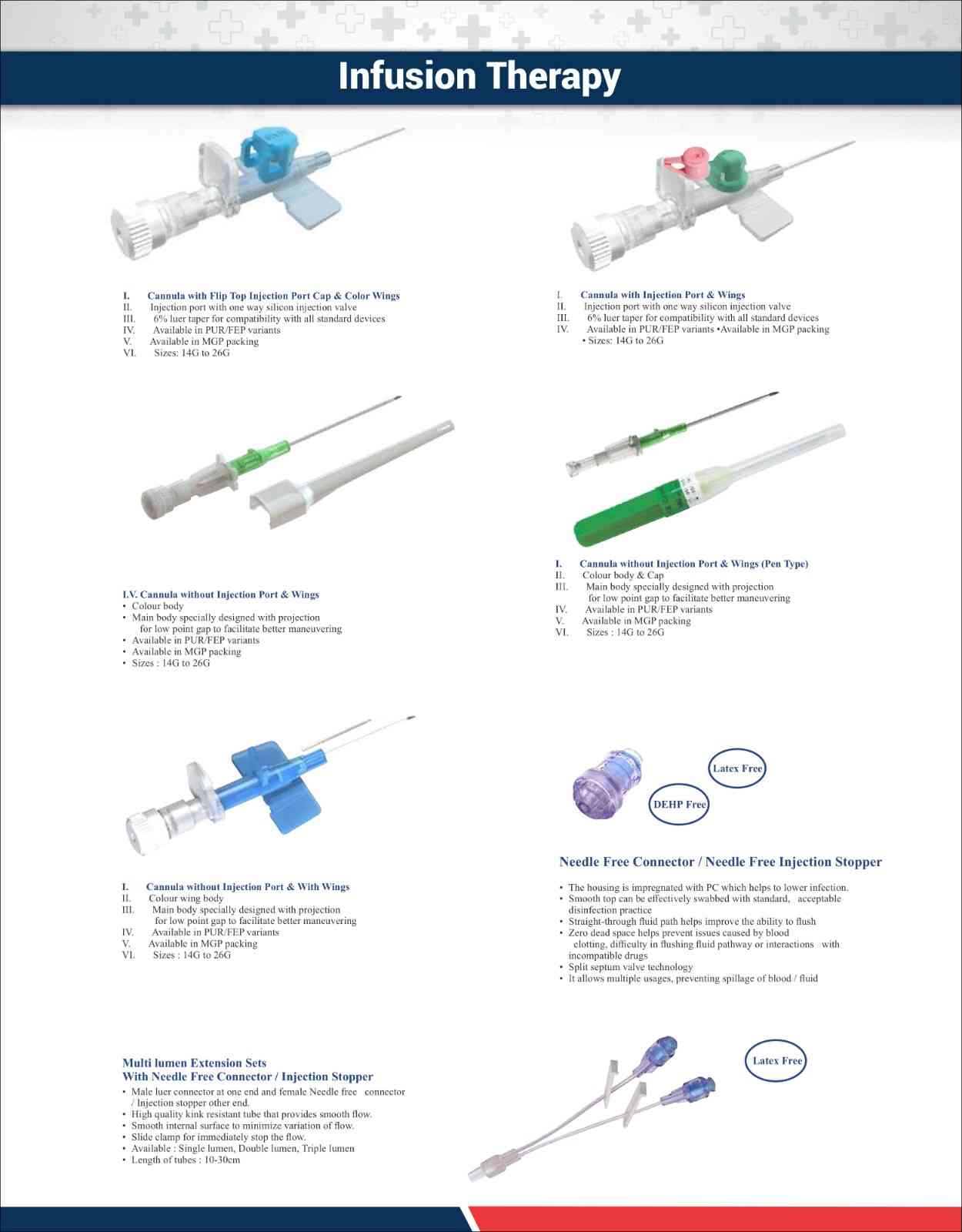

Cannula with Flip Top Injection
Port Cap & Color Wings
- Injection port with one way silicon injection valve
- 6% luer taper for compatibility with all standard devices
- Available in PUR/FEP variants
- Available in MGP packing
- Sizes: 14G to 26G

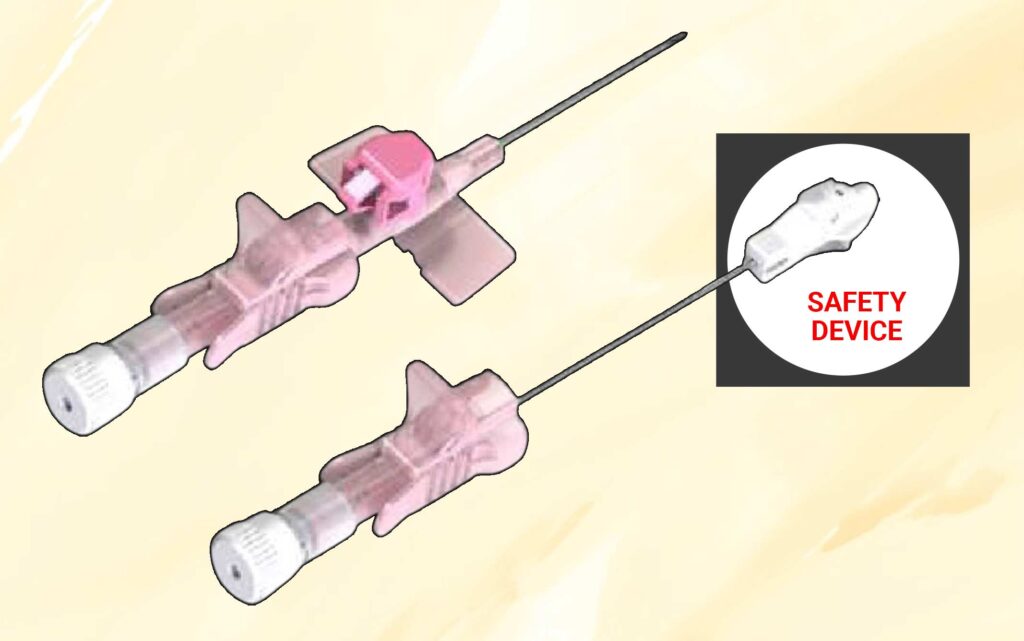

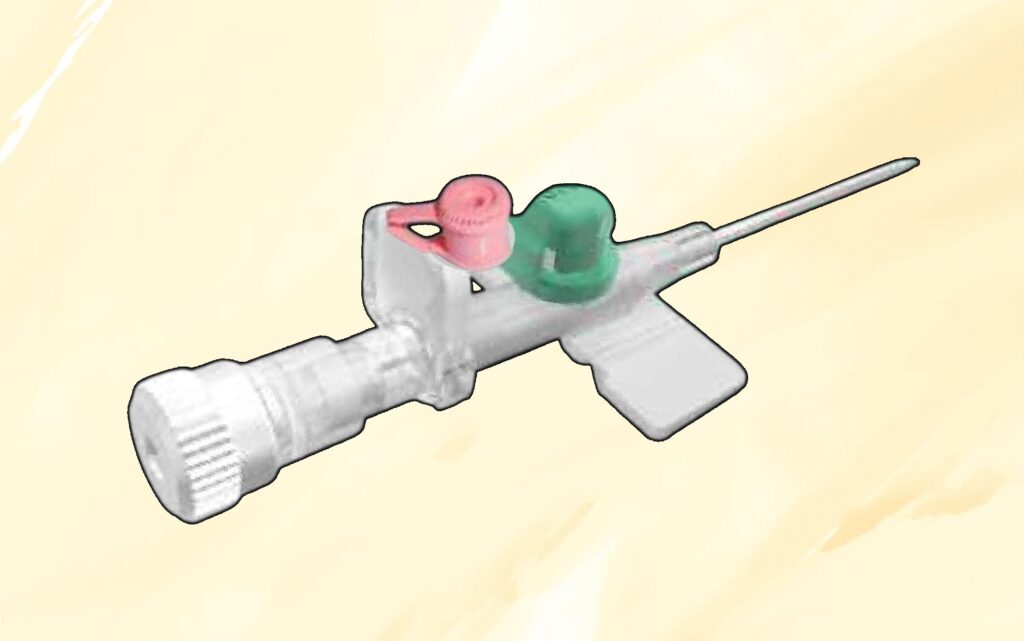

Cannula with Injection
Port & Wings
- Injection port with one way silicon injection valve
- 6% luer taper for compatibility with all standard devices
- Available in PUR/FEP variants
- Available in MGP packing
- Sizes: 14G to 26G

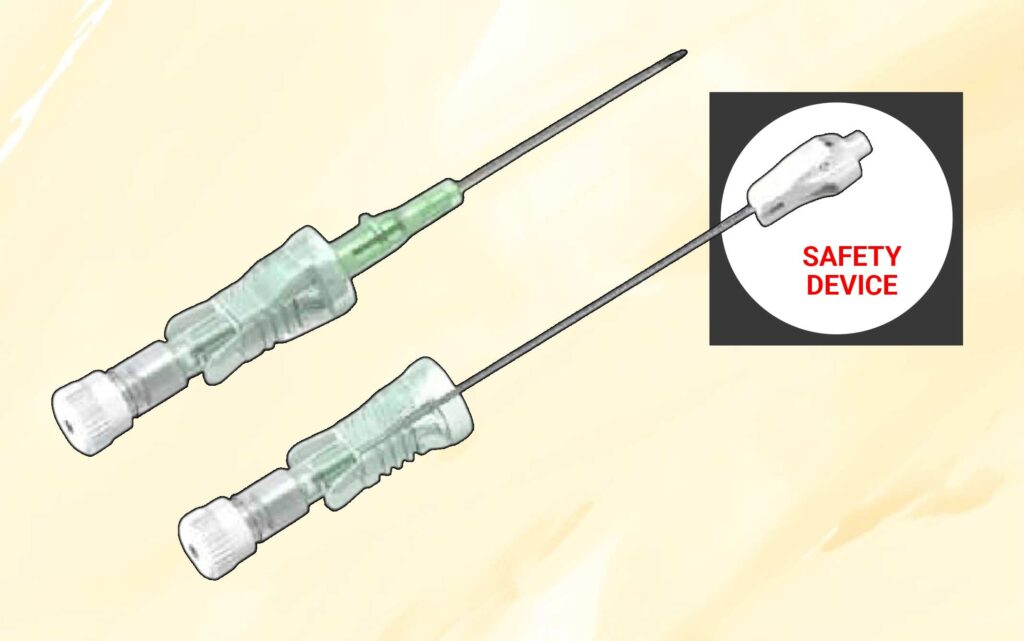

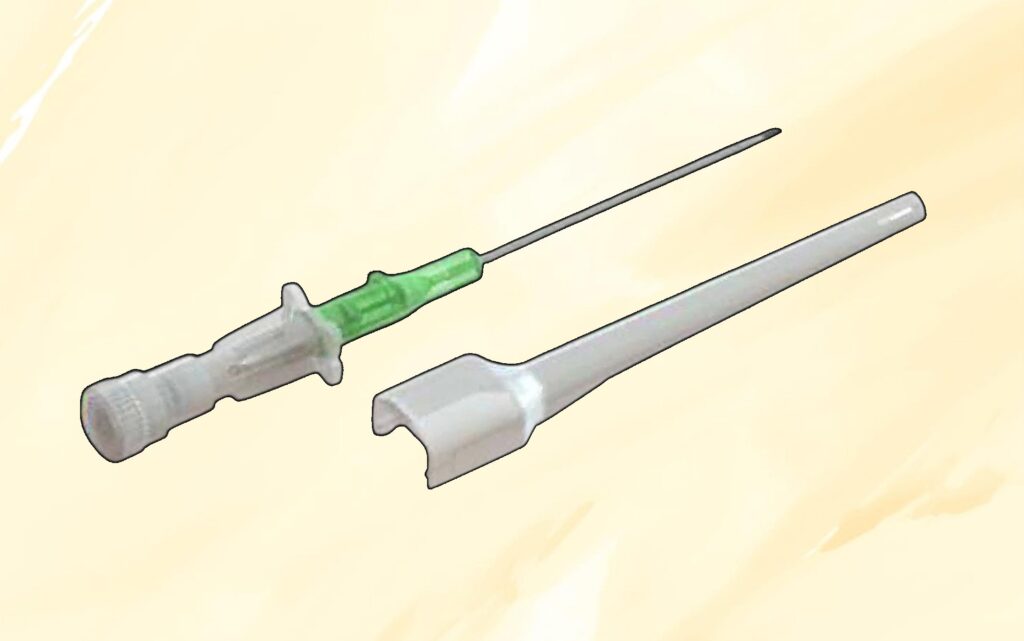

Cannula without Injection
Port & Wings
- Colour body
- Main body specially designed with projection for low point gap to facilitate better maneuvering
- Available in PUR/FEP variants
- Available in MGP packing
- Sizes: 14G to 26G

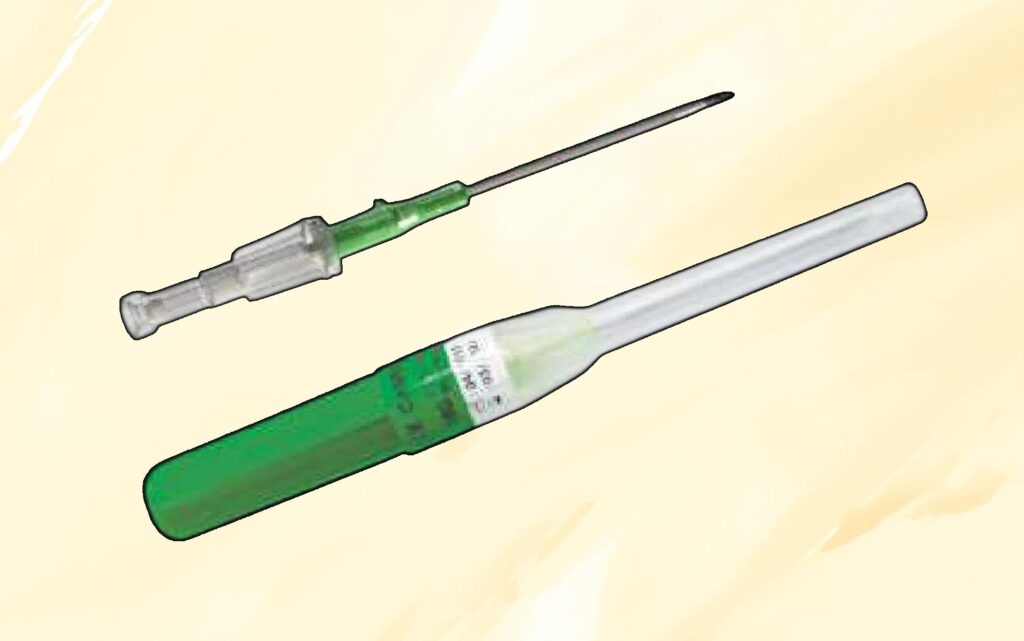

Cannula without Injection
Port & Wings (Pen Type)
- Colour body & Cap
- Main body specially designed with projection for low point gap to facilitate better maneuvering
- Available in PUR/FEP variants
- Available in MGP packing
- Sizes: 14G to 26G

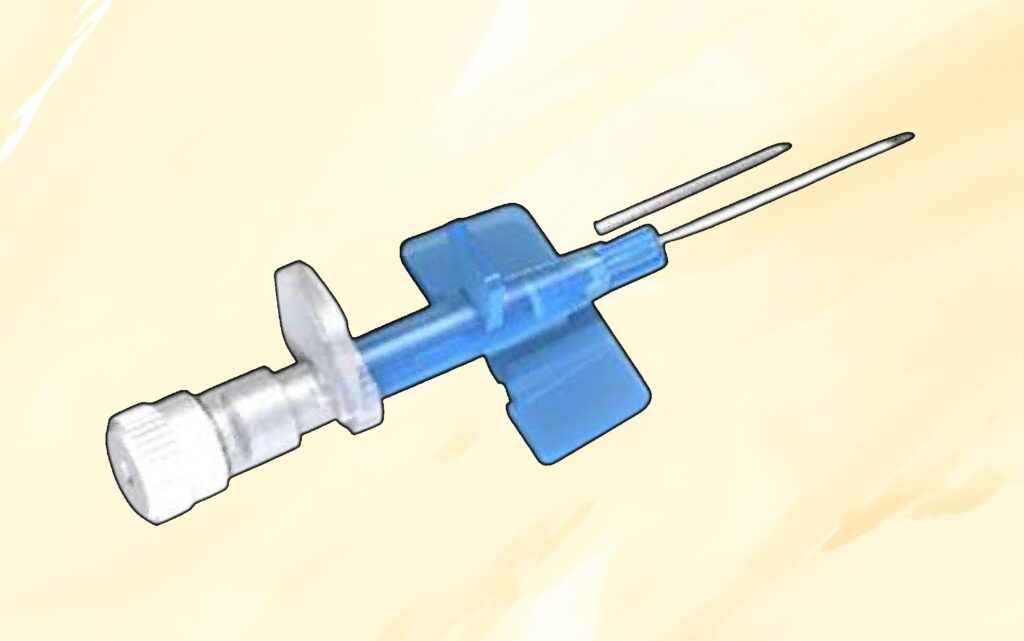

Cannula without Injection
Port & With Wings
- Colour wing body
- Main body specially designed with projection for low point gap to facilitate better maneuvering
- Available in PUR/FEP variants
- Available in MGP packing
- Sizes: 14G to 26G

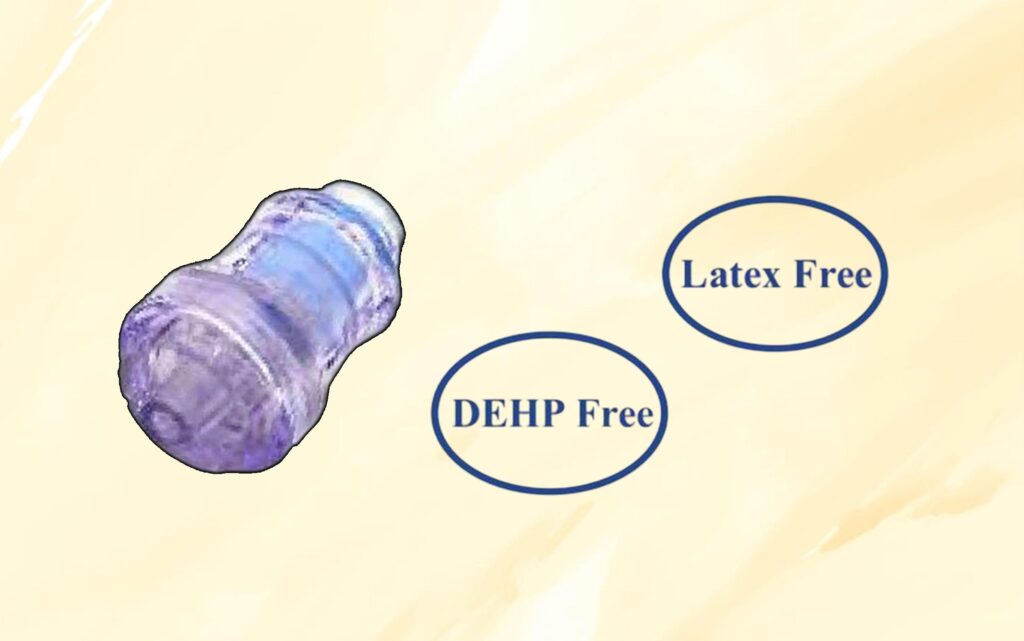

Needle Free Connector / Needle Free
Injection Stopper
- The housing is impregnated with PC which helps to lower infection.
- Smooth top can be effectively swabbed with standard, acceptable disinfection practice
- Straight-through fluid path helps improve the ability to flush
- Zero dead space helps prevent issues caused by blood clotting, difficulty in flushing fluid pathway or interactions with incompatible drugs
- Split septum valve technology
- It allows multiple usages, preventing spillage of blood / fluid
Multi lumen Extension Sets With Needle Free Connector / Injection Stopper
- Male luer connector at one end and female Needle free connector / Injection stopper other end
- High quality kink resistant tube that provides smooth flow
- Smooth internal surface to minimize variation of flow
- Slide clamp for immediately stop the flow
- Available : Single lumen, Double lumen, Triple lumen
- Length of tubes : 10-30cm

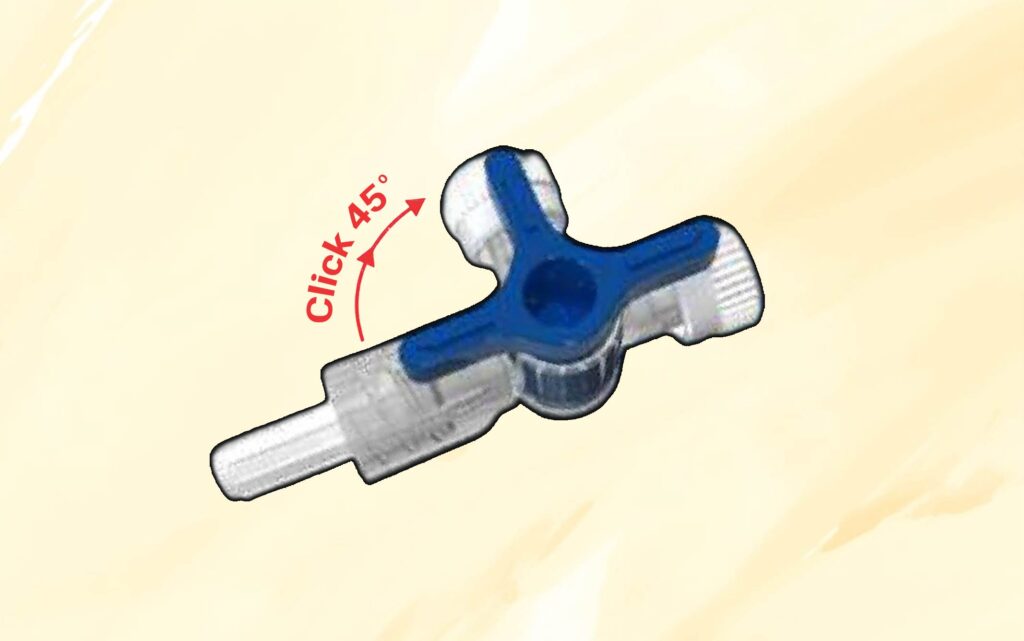

Three Way Stop Cock Click 45°
- Can Sustain Pressure up to 4.5 bar (65 psi)
- Smooth movement
- Minimum priming volume for accurate drug administration
- Highly transparent (free from blue tinge)
- Rotating male luer and two female luer connectors
- Arrow indication on the handle to indicate the direction of flow
- Connection meets 6% taper to ensure leakage free fitment
Three Way Stop Cock
- Pressure handling capability : up to 10 bar
- Universal 6% taper to make it compatible with wide range of other medical equipment
- Arrow indication mark on handle to indicate the direction of flow
- Design with minimum priming volume to ensure correct drug administration
- Available in Lipid Resistant / BPA Free
- Available : Blue, Red & White

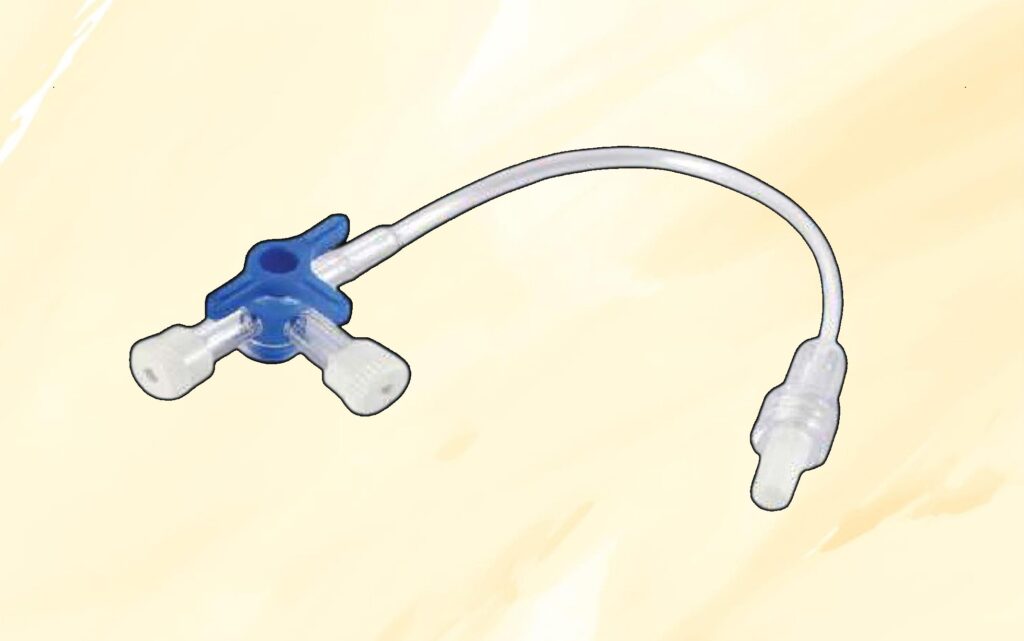

Three Way Stop Cock with Extension Tube
- Three Way Stop Cock at one end & male luer lock at the other end of extension tube
- High quality kink resistant tube that provides smooth flow. Universal 6% taper to make it compatible with wide range of other medical equipment.
- Arrow symbols to indicate the direction of flow
- Minimum priming volume required for correct drug administration
- The integrated 3-Way stop cock offers multiple infusion line
- Tube length available (cm): 10, 25, 50, 80, 100,150, 200
I.V. Cannula with Integrated Three Way
Stop Cock
- Colour wing body
- 360° rotation of the tap without limitation
- Available in PUR/FEP/PTFE variants
- Available in Tyvek/MGP packing
- Sizes: 14G to 26G

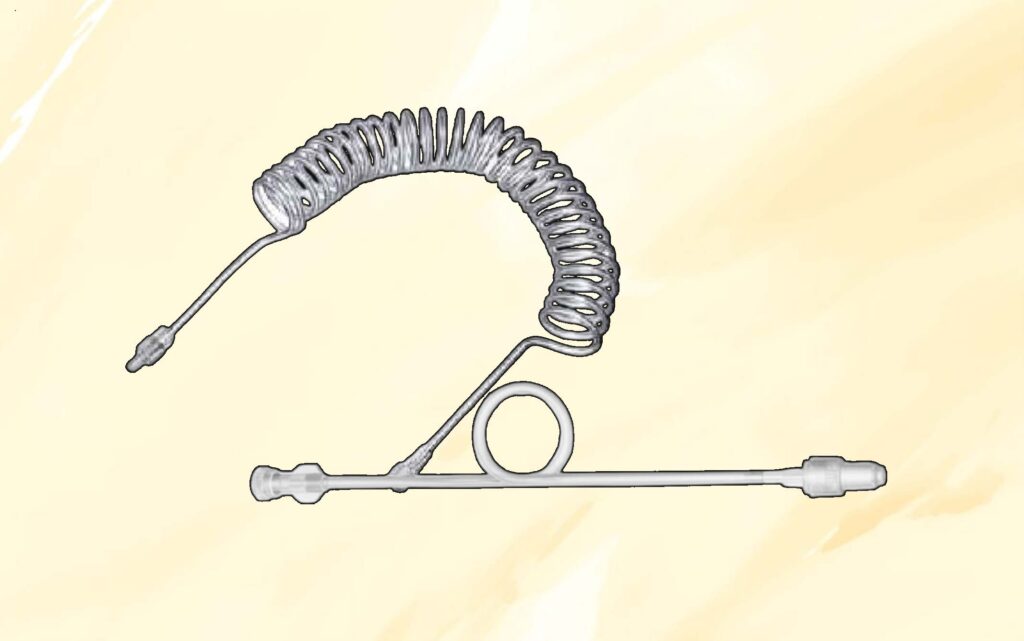

Extension Line Low or High Pressure
(Plain & Spiral)
- Transparent Extension Line (with colour coded stickers)
- 6% male & female luer locks
- Kink resistant PVC tubing
- Tube dia : Int : (1.0mm) Ext.(3.0mm) & pressure handling capacity : 800 psi
- Smooth internal surface to minimize variation of flow
- Sizes (Plain) :25,50,100,150,200 cm
- Sizes (Spiral) :100,150,200,300,400 cm

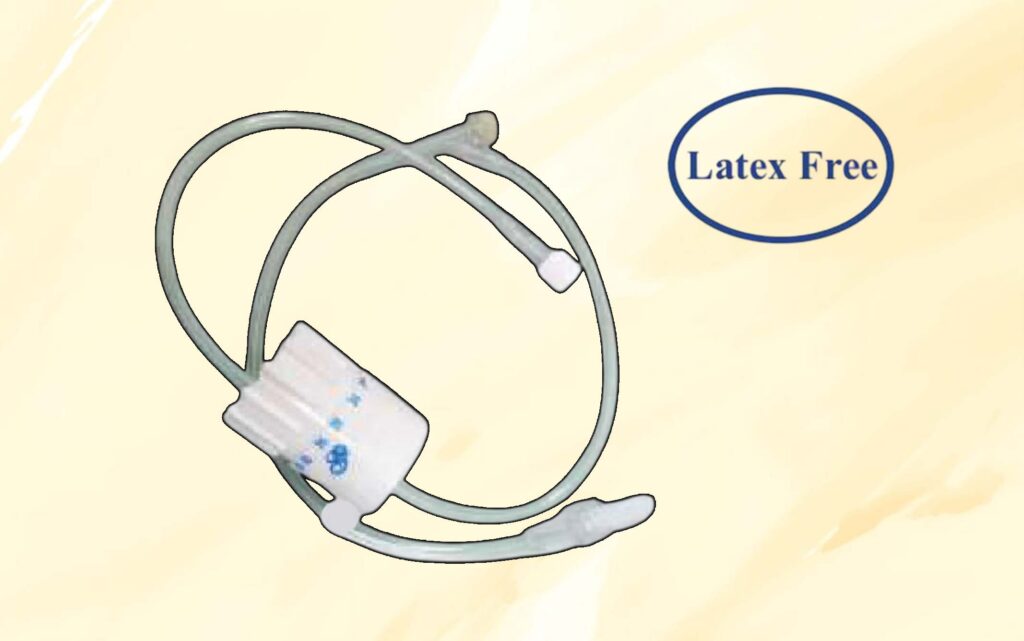

I.V. Flow Regulator Extension Set
- Precise flow rate control of IV fluids with range of 5 to 250 ml/hr
- With “Y” injection port (latex or ) for intermittent medication
- Also available with thumb support “Y” injection port and Needle free “Y” Site
- Soft & kink resistant PVC tubing
- Male luer connector at one end and female luer connector at other end
- Standard tube length : 20 cm without “Y” site & 40 cm with “Y” site
- Tube dia : I Ø 3.0 mm, O Ø 4.1 mm

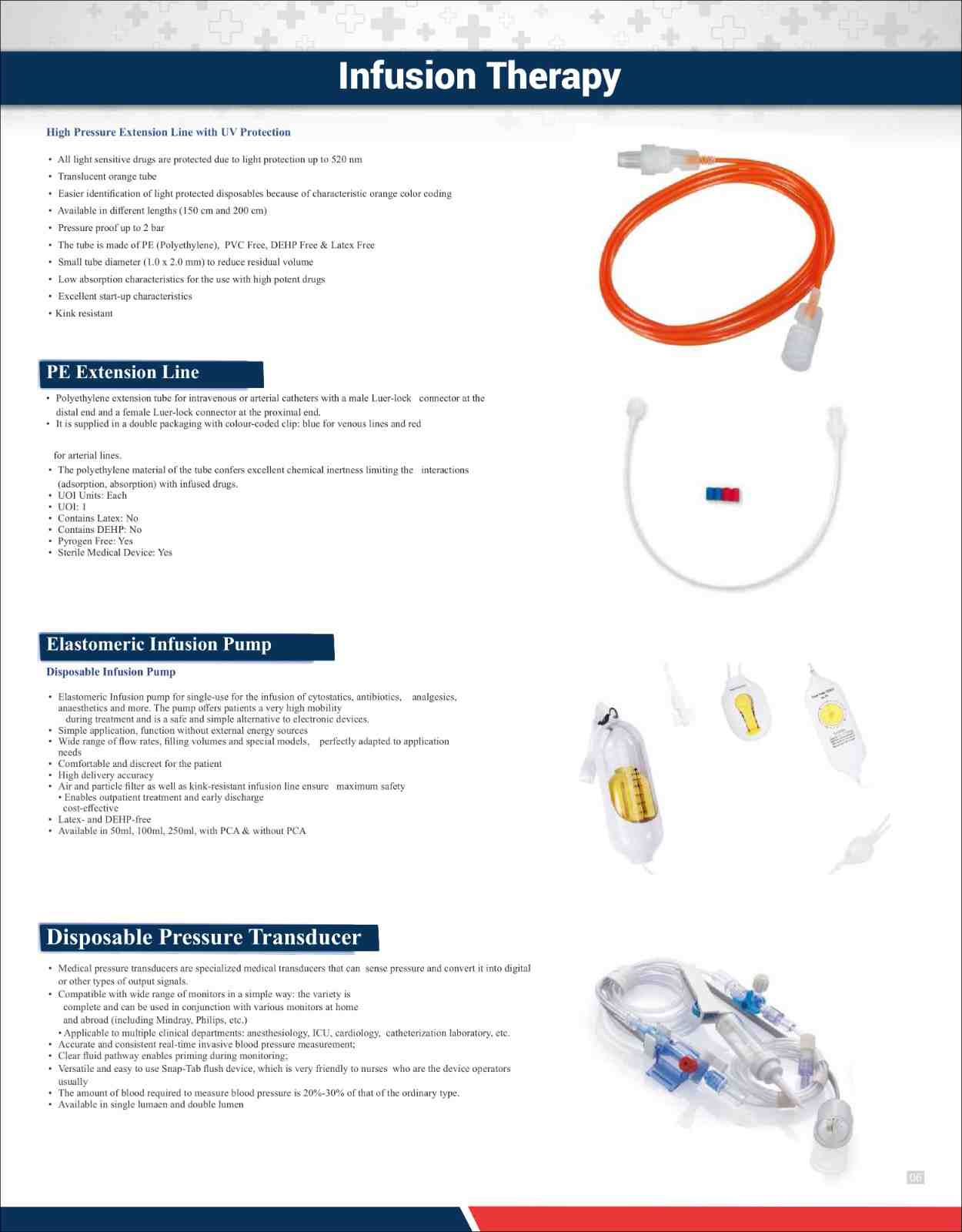

High Pressure Extension Line with
UV Protection
- All light sensitive drugs are protected due to light protection up to 520 nm
- Translucent orange tube
- Easier identification of light protected disposables because of characteristic orange color coding
- Available in different lengths (150 cm and 200 cm)
- Pressure proof up to 2 bar
- The tube is made of PE (Polyethylene), PVC Free, DEHP Free & Latex Free
- Small tube diameter (1.0 x 2.0 mm) to reduce residual volume
- Low absorption characteristics for the use with high potent drugs
- Excellent start-up characteristics
- Kink resistant

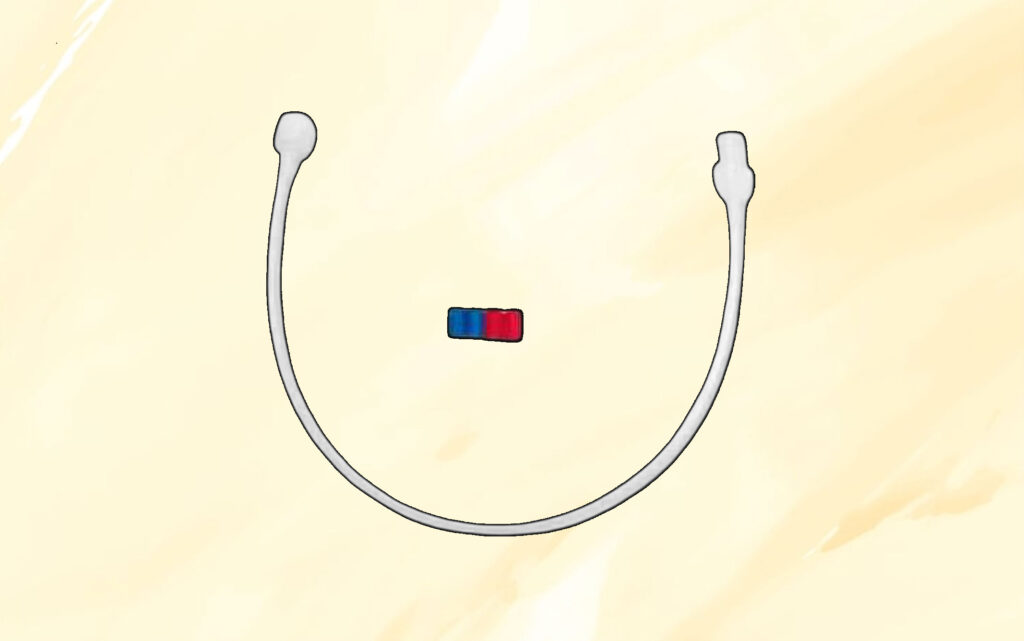

PE Extension Line
- Polyethylene extension tube for intravenous or arterial catheters with a male Luer-lock connector at the distal end and a female Luer-lock connector at the proximal end.
- It is supplied in a double packaging with colour-coded clip: blue for venous lines and red for arterial lines
- The polyethylene material of the tube confers excellent chemical inertness limiting the interactions (adsorption, absorption) with infused drugs.
- UOI Units: Each
- UOI: 1
- Contains Latex: No
- Contains DEHP: No
- Pyrogen Free: Yes
- Sterile Medical Device: Yes

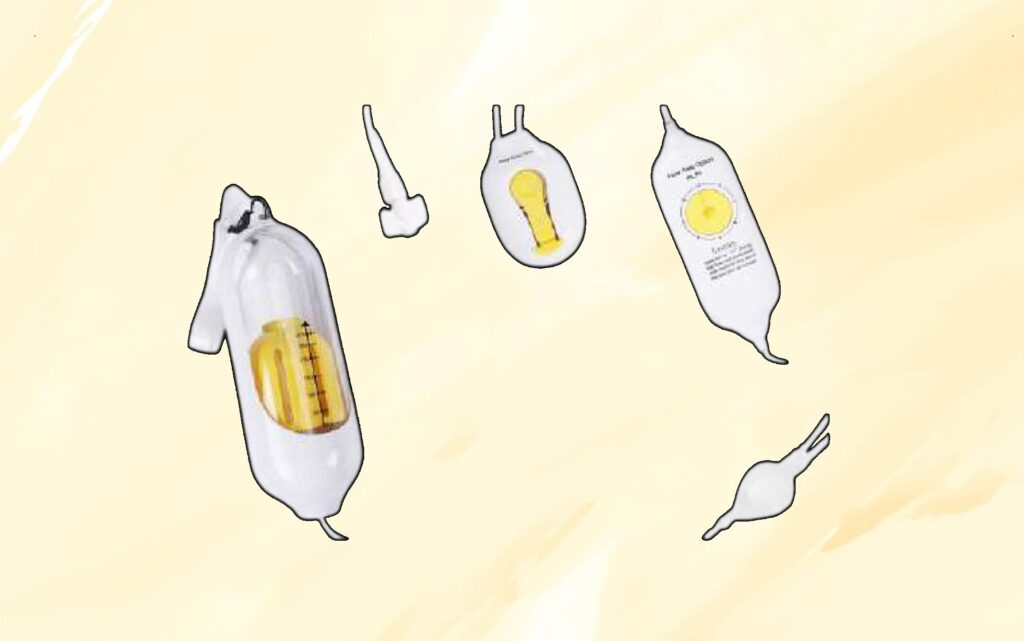

Elastomeric Infusion Pump
( Disposable Infusion Pump)
- Elastomeric Infusion pump for single-use for the infusion of cytostatics, antibiotics, analgesics, anaesthetics and more. The pump offers patients a very high mobility during treatment and is a safe and simple alternative to electronic devices
- Simple application, function without external energy sources
- Wide range of flow rates, filling volumes and special models, perfectly adapted to application needs
- Comfortable and discreet for the patient
- High delivery accuracy
- Air and particle filter as well as kink-resistant infusion line ensure maximum safety
- Enables outpatient treatment and early discharge cost-effective
- Latex- and DEHP-free
- Available in 50ml, 100ml, 250ml, with PCA & without PCA
Disposable Pressure Transducer
- Medical pressure transducers are specialized medical transducers that can sense pressure and convert it into digital or other types of output signals
- Compatible with wide range of monitors in a simple way: the variety is complete and can be used in conjunction with various monitors at home and abroad (including Mindray, Philips, etc.)
- Applicable to multiple clinical departments: anesthesiology, ICU, cardiology, catheterization laboratory, et
- Accurate and consistent real-time invasive blood pressure measurement;
- Clear fluid pathway enables priming during monitoring
- Versatile and easy to use Snap-Tab flush device, which is very friendly to nurses who are the device operators usually
- The amount of blood required to measure blood pressure is 20%-30% of that of the ordinary type
- Available in single lumaen and double lumen

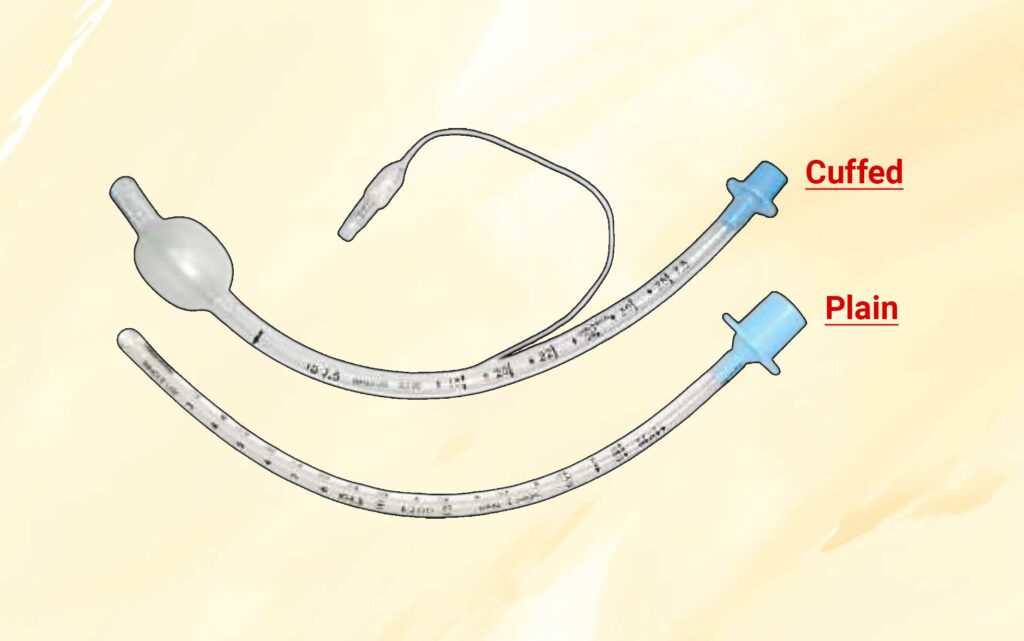

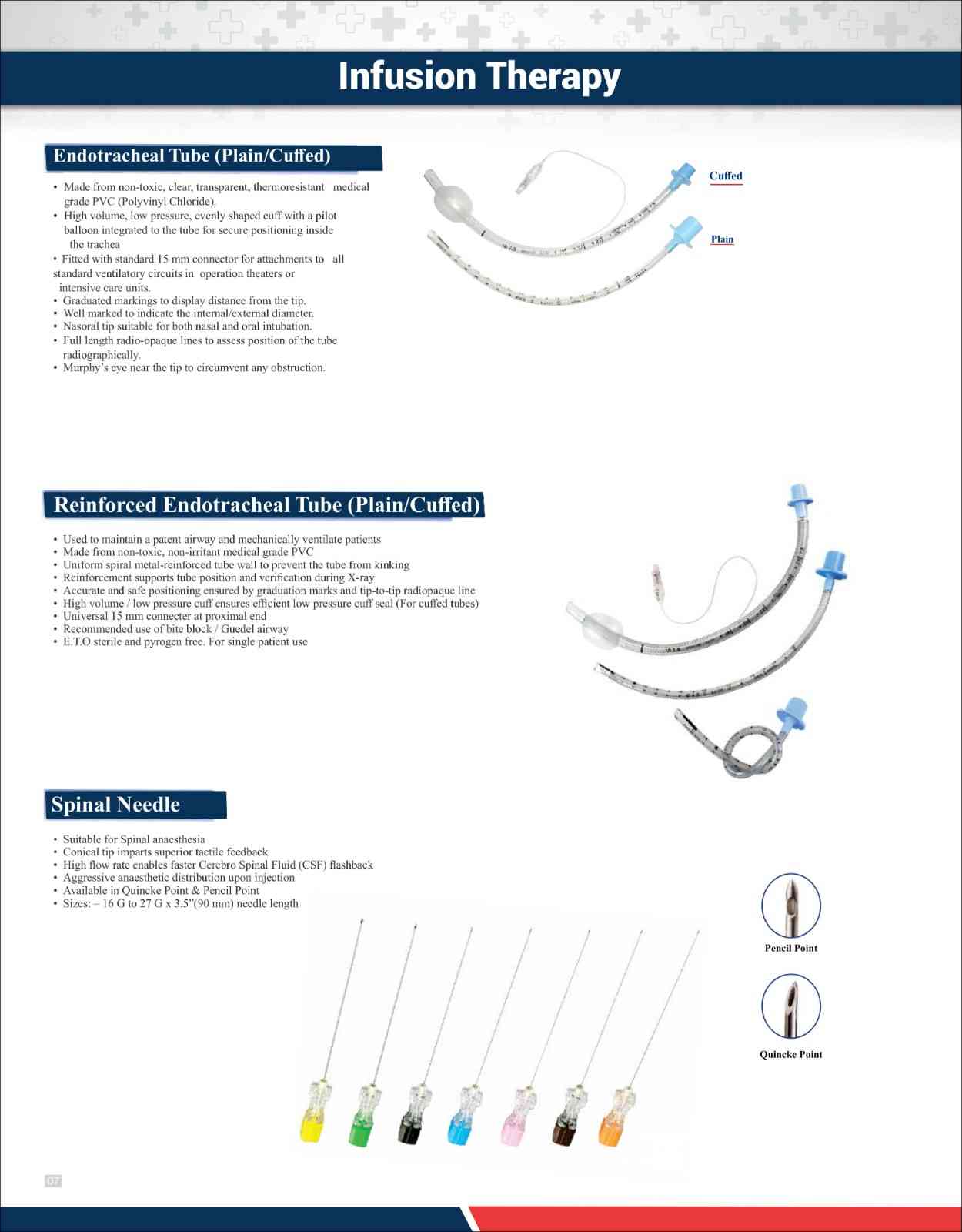

Endotracheal Tube (Plain/Cuffed)
- Made from non-toxic, clear, transparent, thermoresistant medical grade PVC (Polyvinyl Chloride).
- High volume, low pressure, evenly shaped cuff with a pilot balloon integrated to the tube for secure positioning inside the trachea
- Fitted with standard 15 mm connector for attachments to all standard ventilatory circuits in operation theaters or intensive care units
- Graduated markings to display distance from the tip
- Well marked to indicate the internal/external diameter
- Nasoral tip suitable for both nasal and oral intubation
- Full length radio-opaque lines to assess position of the tube radiographically
- Murphy’s eye near the tip to circumvent any obstruction
Endotracheal Tube (Plain/Cuffed)
- Made from non-toxic, clear, transparent, thermoresistant medical grade PVC (Polyvinyl Chloride).
- High volume, low pressure, evenly shaped cuff with a pilot balloon integrated to the tube for secure positioning inside the trachea
- Fitted with standard 15 mm connector for attachments to all standard ventilatory circuits in operation theaters or intensive care units
- Graduated markings to display distance from the tip
- Well marked to indicate the internal/external diameter
- Nasoral tip suitable for both nasal and oral intubation
- Full length radio-opaque lines to assess position of the tube radiographically
- Murphy’s eye near the tip to circumvent any obstruction

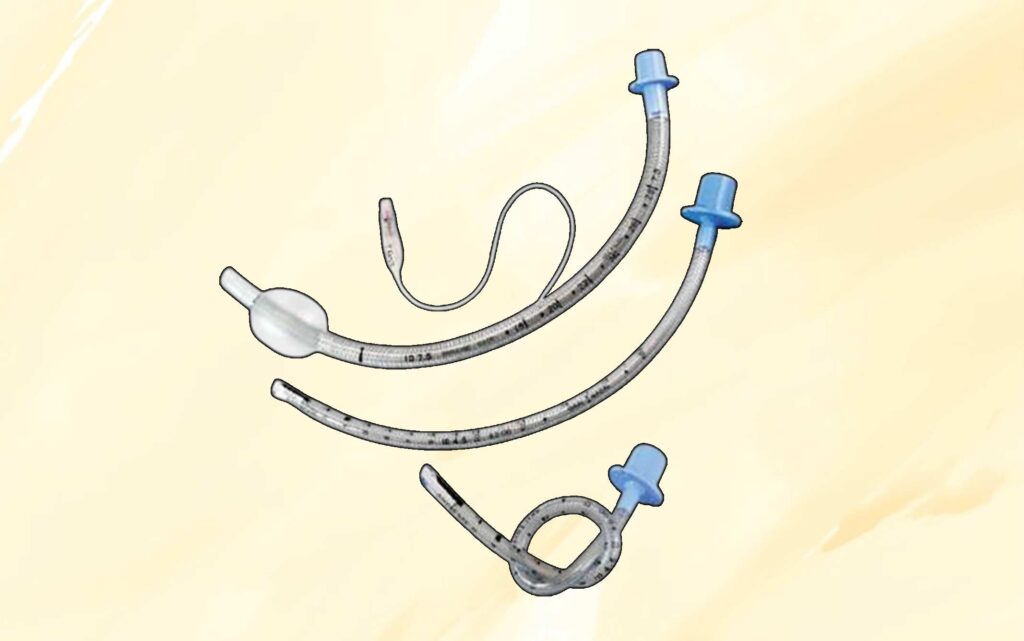

Reinforced Endotracheal Tube (Plain/Cuffed)
- Used to maintain a patent airway and mechanically ventilate patients
- Made from non-toxic, non-irritant medical grade PVC
- Uniform spiral metal-reinforced tube wall to prevent the tube from kinking
- Reinforcement supports tube position and verification during X-ray
- Accurate and safe positioning ensured by graduation marks and tip-to-tip radiopaque line
- High volume / low pressure cuff ensures efficient low pressure cuff seal (For cuffed tubes)
- Universal 15 mm connecter at proximal end
- Recommended use of bite block / Guedel airway
- E.T.O sterile and pyrogen free. For single patient use
IV Cannula Chart
| Gauge (G) | Catheter OD (mm) | Catheter ID (mm) | Catheter Length (mm) | Flow Rate (ml/min) | Common Uses |
| 14 G | 2.1 mm | 1.7 mm | 45 mm | 270 ml/min | Rapid brood transfusion, breuina, emergency |
| 16 G | 1.7 mm | 1.3 mm | 45 mm | 180 ml/min | Blond transfusion, surgery, large volume fuids |
| 17 G | 1.5 mm | 1.2 mm | 45 mm | 125 ml/min | Blood transfusion, surgery |
| 18 G | 1.3 mm | 0.9 mm | 32-45 mm | 90 ml/min | Blood transfusion, IV fluids, general use |
| 20 G | 0.9 mm | 0.6 mm | 32 mm | 60 ml/min | General IV use, medicationa, IV fluids |
| 22 G | 0.7 mm | 0.4 mm | 25 mm | 36 ml/min | Pediatrics, small veins, IV medicalions |
| 24 G | 0.6 mm | 0.4 mm | 19 mm | 20 ml/min | Pediatrics, newonatal. elderly patients, deicate veins |
| 26 G | 0.45 mm | 0.2 mm | 19 mm | 13 ml/min | Neonates, fragile, veins, very fine IV use |

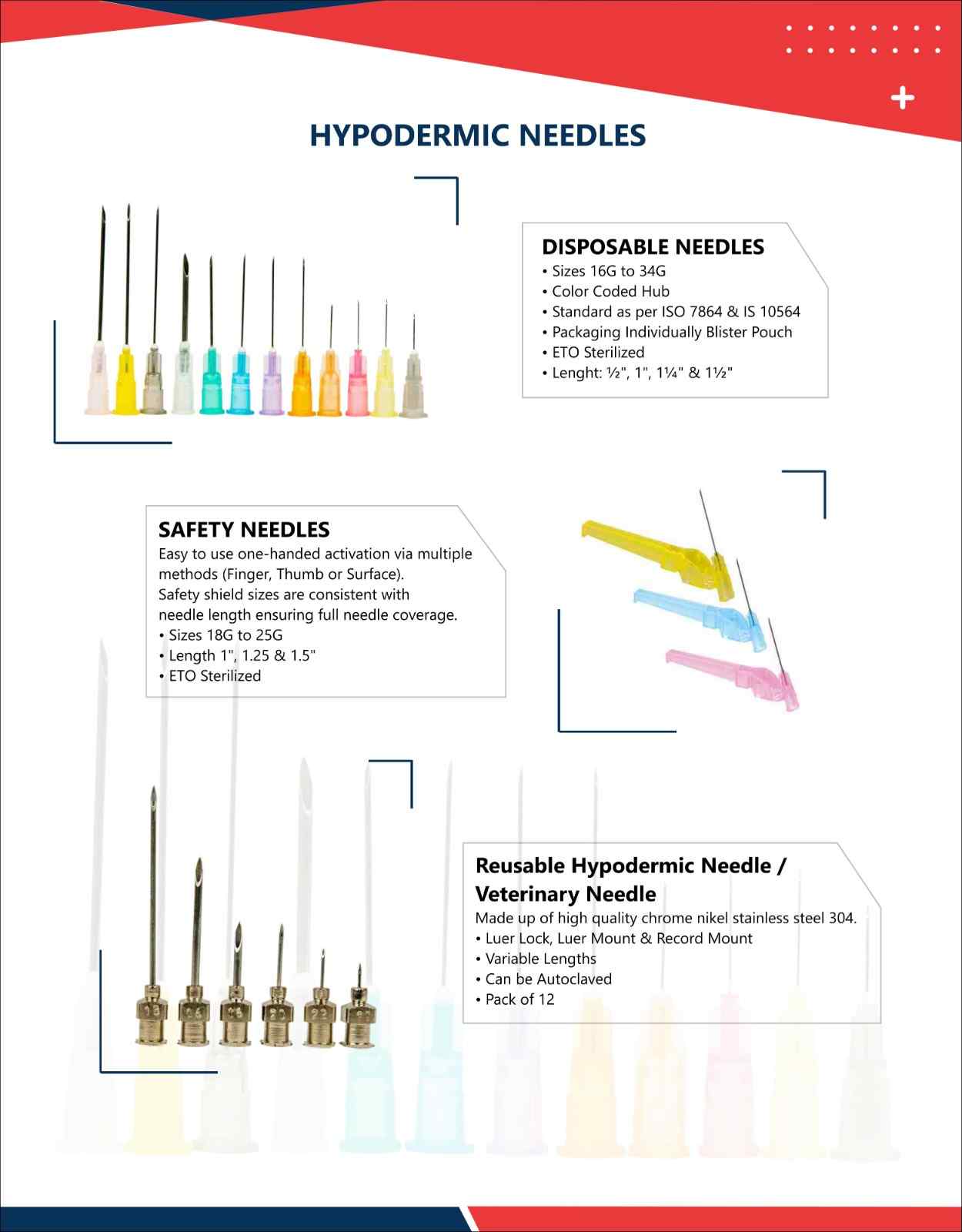

Hypodermic Needle
| Gauge (G) | Outer Diameter (inches) | Outer Diameter (mm) | Common Uses |
| 14 G | 0.083 in | 2.1 mm | Blood tranfusion, rapid fluid delivery |
| 16 G | 0.065 in | 1.65 mm | Rapid fliud infusion, blood donation |
| 18 G | 0.050 in | 1.27 mm | Blood donation, thick medications |
| 20 G | 0.035 in | 0.91 mm | General injections, IV fluids |
| 21 G | 0.032 in | 0.81 mm | Routine blood draws, injections |
| 22 G | 0.028 in | 0.71 mm | Immunizations, general injections |
| 23 G | 0.025 in | 0.64 mm | Intramuscular injection |
| 24 G | 0.022 in | 0.56 mm | Pediatrics, elderly injection |
| 25 G | 0.020 in | 0.51 mm | Subcutaneous injection, insulin |
| 26 G | 0.018 in | 0.45 mm | Subcutaneous injection, pediatric use |
| 27 G | 0.016 in | 0.41 mm | Fine needle injection, insulin |
| 30 G | 0.012 in | 0.31 mm | very fine injection (insulin) |
